28025 - Mouse Ventilator

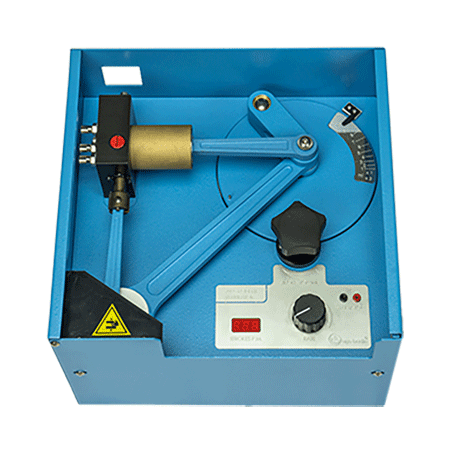

The 28025 Mouse Ventilator is a positive pressure pump (according to Starling's ventilation method), designed for the use with Mice, but also suitable for perinatal rats and small birds. It consists of a variable-speed geared motor linked by a novel variable stroke mechanism to an interchangeable cylinder/piston assembly (1 or 0.5 ml).
The 28025 Mouse Ventilator is a positive pressure pump (according to Starling's ventilation method), designed for the use with Mice, but also suitable for perinatal rats and small birds. It consists of a variable-speed geared motor linked by a novel variable stroke mechanism to an interchangeable cylinder/piston assembly (1 or 0.5 ml).
The speed of the motor is precisely regulated by an electronic feedback-controlled drive, thus providing the most accurate and reliable stroke rate control of any respirator available. Care has been taken to ensure that electronic noise broadcasting is negligible.
The operation of the ventilator may be "paused" by an external TTL logic signal (optional feature).
Features and Benefits
Specifications
Accessories
| FEATURE |
BENEFIT |
| Connections and airflow specifically designed for mice |
Minimal dead space to improve oxygenation |
| High frequency rate (up to 300 strokes/min) |
Fits mice respiration parameters under anesthesia |
| Optional start/stop feature |
Synchronize with external imaging devices |
| |
|
| Rate: |
60 to 300 strokes per minute |
|
Operating Temperature: |
10° to 40° C |
| Rate Read-Out : |
on digital display |
|
Sound Level: |
< 60 dB |
| Start-Stop: |
by synchronised command |
|
Weight (net): |
Kg 2.5 |
| Stroke Volume: |
0.1 to 1 or 0.05 to 0.5 ml, depending on the cylinder/piston installed |
|
Shipping Weight: |
Kg 5.0 approx |
| Stroke Volume Reproducibility: |
+/- 2% |
|
Dimensions: |
20 x 13 x 18.5 cm |
| Stroke Volume Scale: |
precision engraved, 0.05 ml divisions |
|
Shipping dimensions: |
49 x 39 x 30 cm |
| Power Requirements: |
115 or 230 V, 50/60 Hz, 10 VA max |
|
|
|
| |
|
|
|
|
| 28125 |
Mouse Ventilator, special model provided with suitable circuit and BNC connector for synchronized Start/Stop, see paragraph 4.4-Synchronized Start/Stop |
| 28025-320 |
Animal Operating Table |
| |
|
